Car-bottom Annealing Furnaces: The Future of Heat Treatment
hora de emissão：2025-12-24 09:47:05
Autor：Grupo EUCHN, forno industrial China-Europa
Navegar：
À medida que a indústria avança em direção a setores de alta tecnologia e precisão, o tratamento térmico se torna essencial.
As manufacturing advances toward high-end and precision sectors, heat treatment equipment—a critical link in industrial production—directly impacts product quality and production efficiency. In recent years, car-bottom annealing furnaces have gained wide application in machinery manufacturing, iron and steel metallurgy, and casting/forging industries due to their structural stability, operational flexibility, and uniform heat treatment results.

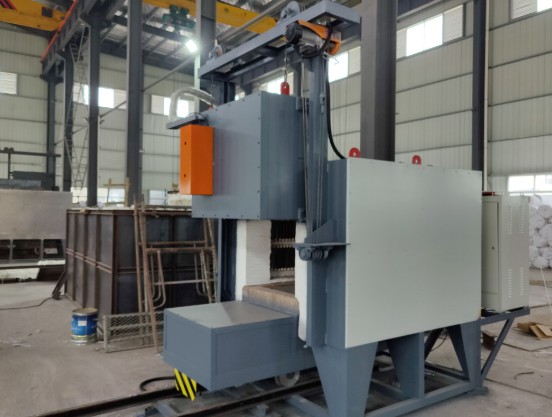

The car-bottom annealing furnace is primarily used for heat treatment processes such as annealing, normalizing, and tempering of metal materials, making it ideal for batch processing of large or heavy workpieces. Featuring a trolley-based loading and unloading structure, the equipment ensures convenient handling, effectively reducing labor intensity while enhancing operational safety. Compared to traditional fixed furnaces, car-bottom annealing furnaces demonstrate superior performance in production continuity and process adaptability.
Regarding energy efficiency and environmental protection, the new generation of car-bottom annealing furnaces generally adopts high-efficiency combustion systems and premium insulation materials, significantly reducing energy consumption and heat loss. Simultaneously, through intelligent temperature control systems, precise furnace temperature regulation and uniform heating are achieved. This effectively improves annealing quality, reduces internal material stress, and increases the qualification rate of finished products.
Industry experts state that with the deep advancement of intelligent and green manufacturing, car-bottom annealing furnaces are evolving toward automation and digitalization. Some manufacturers have introduced PLC control systems and remote monitoring technologies, making equipment operation more stable and reliable, providing strong support for enterprises to reduce costs and increase efficiency.
In the future, as the pace of manufacturing transformation and upgrading accelerates, market demand for car-bottom annealing furnaces is expected to grow steadily. High-performance, high-reliability heat treatment equipment will play an increasingly vital role in enhancing industrial product quality, injecting new momentum into the high-quality development of the industry.
Small High-Temperature Car Bottom Furnace Parameter Table
Parameter
Unit
RT3-30-9
RT3-75-9
RT3-85-9
RT3-90-9
RT3-120-9
RT3-150-9
RT3-180-9
RT3-220-9
Rated Power
kW
30
75
85
90
120
150
180
220
Hearth Size (Length)
mm
950
1500
1200
1800
1800
2000
2100
2500
Hearth Size (Width)
mm
500
750
600
900
900
1000
1050
1300
Hearth Size (Height)
mm
450
600
450
600
650
700
750
900
Empty Furnace Heating Time
h
≤3
≤3
≤3
≤3
≤3.5
≤3.5
≤3.5
≤4
Empty Furnace Power Consumption
kW
11
19
13
18
20
34
40
52
Maximum Loading Capacity
kg
500
1500
1000
2500
3000
4500
5000
7000
Tabela de parâmetros do forno de fundo de carro de temperatura média-alta
Parâmetro
Unidade
RT3-250-9
RT3-270-9
RT3-280-9
RT3-300-9
RT3-320-9
RT3-360-9
Potência nominal
kW
250
270
280
300
320
360
Dimensões da lareira (comprimento)
mm
2400
3000
2400
2400
3000
3500
Dimensões da lareira (largura)
mm
1500
1500
2000
2000
1500
1500
Dimensões da lareira (altura)
mm
800
1000
1700
1700
1500
1500
Tempo de aquecimento da fornalha vazia
h
≤4
≤4
≤4
≤4
≤4,5
≤4,5
Consumo de energia com forno vazio
kW
≤65
≤70
≤80
≤85
≤78
≤90
Capacidade máxima de carga
kg
8300
9000
10000
11000
12000
13500
Tabela de parâmetros do forno de fundo de carro de alta temperatura de grande porte
