Drop Bottom Furnace for Aluminum Solution Heat Treatment Completes Installation and Commissioning, Gaining Increased Industry Attention
Hora de emisión：2025-12-01 13:45:39
Vistazo：
Recently, the drop bottom furnace for aluminum solution heat treatment independ

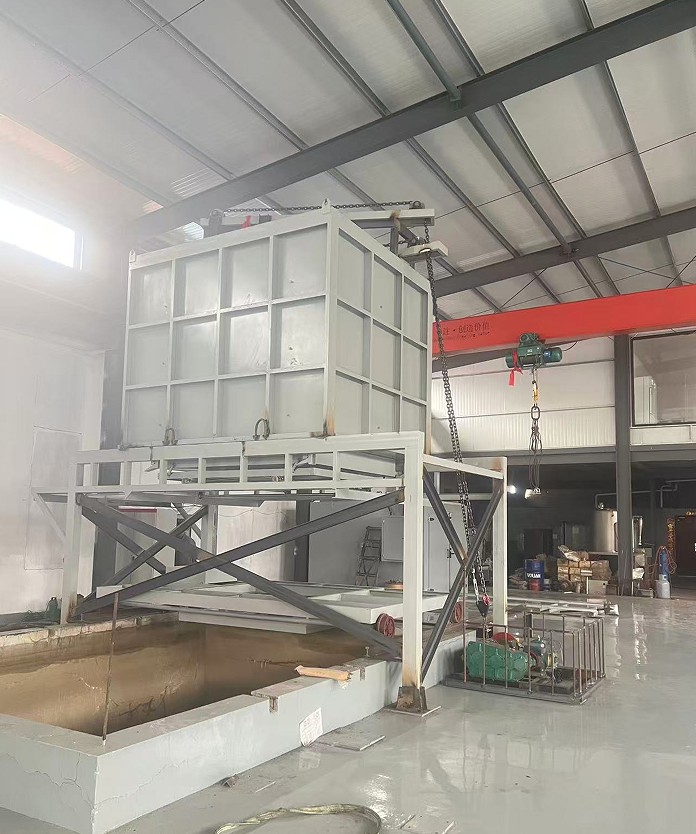

Recently, the drop bottom furnace for aluminum solution heat treatment independently developed by our company officially completed commissioning and has been put into operation. Designed specifically for aluminum alloy solution treatment and rapid quenching processes, this high-performance heat treatment equipment features comprehensive upgrades in temperature control, energy efficiency management, structural design, and process stability. It provides aluminum processing enterprises with a more efficient and reliable aluminum alloy heat treatment solution.
The commissioned vertical quenching furnace features optimizations in the chamber structure, heating system, and circulating air duct, maintaining temperature uniformity of ±5℃. This meets the stringent requirements for high-performance aluminum alloy heat treatment in sectors such as aerospace, automotive, and mechanical equipment. Through precisely controlled temperature curves, the equipment ensures a stable aluminum alloy solution heat treatment process, guaranteeing material structural uniformity.
The equipment utilizes a vertical lifting structure and a high-speed lowering mechanism, allowing the workpiece to enter the quenching medium in the shortest possible time after exiting the furnace, achieving a quenching transfer time of ≤15 seconds. This advantage helps enhance the strength, hardness, corrosion resistance, and fatigue life of aluminum alloys, significantly improving the material's microstructure.
The new generation of the drop bottom furnace adopts a fully digital automatic control system, enabling real-time monitoring of heating rate, heating power, holding time, and the entire quenching process, thereby increasing overall process repeatability and stability.
Simultaneously, the equipment integrates energy-saving heat treatment technology, optimizing the furnace body's insulation structure and heat energy utilization efficiency. This effectively reduces operating energy consumption and lessens the cost burden during the equipment's long-term use.
The successful commissioning and operation of this drop bottom furnace marks a new stage of development for our company in the field of aluminum alloy heat treatment equipment. In the future, the company will continue to invest in materials heat treatment technology, intelligent manufacturing equipment, and automated control systems, providing customers with higher-level aluminum alloy heat treatment equipment and process services.
No.
Name
Technical Parameters
1
Rated Working Temperature
650℃
2
Rated Voltage
380V
3
Temperature Uniformity
±5℃
4
Temperature Control Accuracy
Grade 0.3
5
Heating Power
Resistance band heating 240KW (power adjustable and current limitable), single-zone power 80KW, can be used independently
6
Basket Inner Dimensions
1600 × 1200 × 1200mm
7
Loading Capacity
1000Kg
8
Empty Furnace Heating Time
1.5h (to 550℃)
9
Fan Power
5.5Kw (2 units)
10
Furnace Shell Surface Temp. Rise
≤35℃ (excluding hot spots)
11
Quenching Transfer Time
≤15S
12
Quenching Water Tank Effective Volume
≥30m³
13
Quenching Liquid Temperature
Room temperature
14
Water Tank Heating Method
Configured as required; not configured for this furnace
15
Agitator Power
Configured as required; not configured for this furnace
