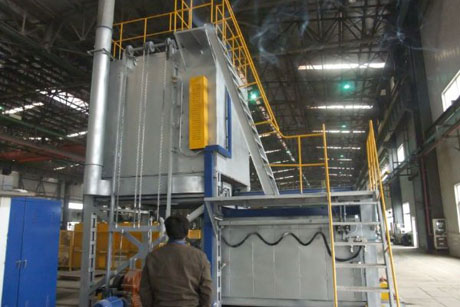

Vertical aluminum alloy quenching furnace
Application:quenching furnaces of this series are mainly used for quenching solid solutions of aluminum alloys. It consists of an elevated air circulation heating furnace, a moving cart with a water tank for quenching solid solution and a pallet, a drive and control system for opening and closing the furnace door, lifting the basket and moving the tank, a temperature control device, PLC and other components.
Features:
1. The workpiece transfer time is short, ensuring the solution treatment performance of the aluminum alloy.
2. It adopts high-flow high-pressure high-temperature heat-resistant fan, providing an adequate amount of circulating air and wind pressure.
3. Advanced hot air diversion system, mature and reliable heating system.
4. A mature temperature control system that effectively suppresses temperature inertia.
5. Reliable door actuator.
6. An improved mechanism for lifting the loading frame.
7. Stable and reliable furnace temperature uniformity.
Model
| T4-45 | T4-65 | T4-75 | T4-90 | T4-120 | T4-150 | T4-240 |
Power （kW）
| 45 | 65 | 75 | 90 | 120 | 150 | 240 |
Size, mm
| 600 | 750 | 800 | 1500 | 1300 | 1500 | 2200 |
Height, mm | 600 | 1000 | 1300 | 1800 | 1600 | 2200 | 2400 |
Quenching time S
| <10 | <15 |
Weight of workpiece, kg
| 500 | 800 | 1000 | 500 | 1500 | 2000 | 2500 |
