Innovation Dimension One: Achieving Low-Carbon, Environmentally Friendly Green Manufacturing

The design focus of the new-generation drop bottom furnace for aluminum solution heat treatment and vertical quenching has shifted from solely pursuing speed to balancing efficiency and environmental protection:

Efficient Heat Recovery System: Through integrated heat recovery devices, the waste heat discharged from the furnace body is used to preheat workpieces or power other auxiliary systems, significantly reducing the overall energy consumption per unit of product and achieving true energy saving and emission reduction.
Clean Quenching Medium Management: Minimizes evaporation and emissions during the quenching process, maintaining a clean and safe workshop environment.
Industry Impact: This not only helps companies comply with increasingly stringent environmental regulations but is also a critical part of building a green supply chain, providing solid technical support for sustainable development.

Innovation Dimension Two: High Degree of Automation and Intelligent Integration

Due to its vertical structure, the vertical quenching furnace is inherently suitable for highly integrated automated processes:

Fully Automatic Loading/Unloading and Transfer: The entire process is executed by robotic arms or high-speed hoists controlled by high-precision sensors and PLC systems, realizing 'one-touch' operation.
Big Data and Fault Prediction: Integration with SCADA or MES systems allows for millisecond-level collection and storage of key parameters such as furnace temperature, pressure, atmosphere, and quenching speed. Utilizing big data analysis, real-time optimization of the process curve and predictive maintenance (PdM) of the equipment status can be achieved, minimizing downtime.
Technical Value: Intelligence ensures a high degree of consistency between different batches of workpieces, eliminating human error, and is essential for the mass production of high-quality aluminum alloy components.

Innovation Dimension Three: Adapting to Future Innovative Applications of Aluminum Alloys

With the emergence of new high-strength-toughness aluminum-lithium alloys and high-heat-resistant cast aluminum alloys, the vertical furnace demonstrates strong adaptability:

Multi-Medium Quenching Flexibility: Meets the specific needs of different alloys for their quenching cooling rate.
Integrated Hot Pressing: Allows for slight calibration or solidification treatment concurrently with heat treatment, further improving the final accuracy and performance of the workpiece.

Conclusion: The Cornerstone of High-End Manufacturing

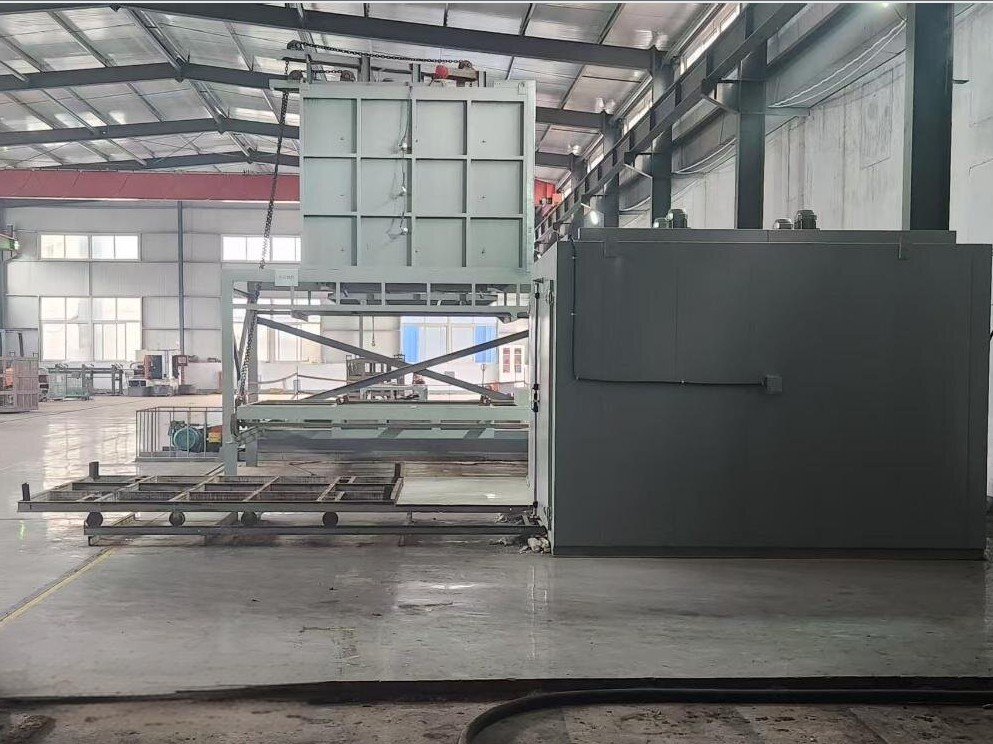

The drop bottom furnace for aluminum solution heat treatment and vertical quenching is no longer just a piece of heat treatment equipment; it has been upgraded to an intelligent manufacturing system that integrates green energy saving, high automation, and flexibility, serving as a core driver for China's journey toward becoming a high-end manufacturing power.

No.	Name	Technical Parameters
1	Rated Working Temperature	650℃
2	Rated Voltage	380V
3	Temperature Uniformity	±5℃
4	Temperature Control Accuracy	Grade 0.3
5	Heating Power	Resistance band heating 240KW (power adjustable and current limitable), single-zone power 80KW, can be used independently
6	Basket Inner Dimensions	1600 × 1200 × 1200mm
7	Loading Capacity	1000Kg
8	Empty Furnace Heating Time	1.5h (to 550℃)
9	Fan Power	5.5Kw (2 units)
10	Furnace Shell Surface Temp. Rise	≤35℃ (excluding hot spots)
11	Quenching Transfer Time	≤15S
12	Quenching Water Tank Effective Volume	≥30m³
13	Quenching Liquid Temperature	Room temperature
14	Water Tank Heating Method	Configured as required; not configured for this furnace
15	Agitator Power	Configured as required; not configured for this furnace
16	Loading Cart Movement	Manual push
17	Quenching Mechanism Motor Power	17/11Kw (Descent rope speed: 16/32 meters/min)
18	Number of Heating Zones	3 zones
