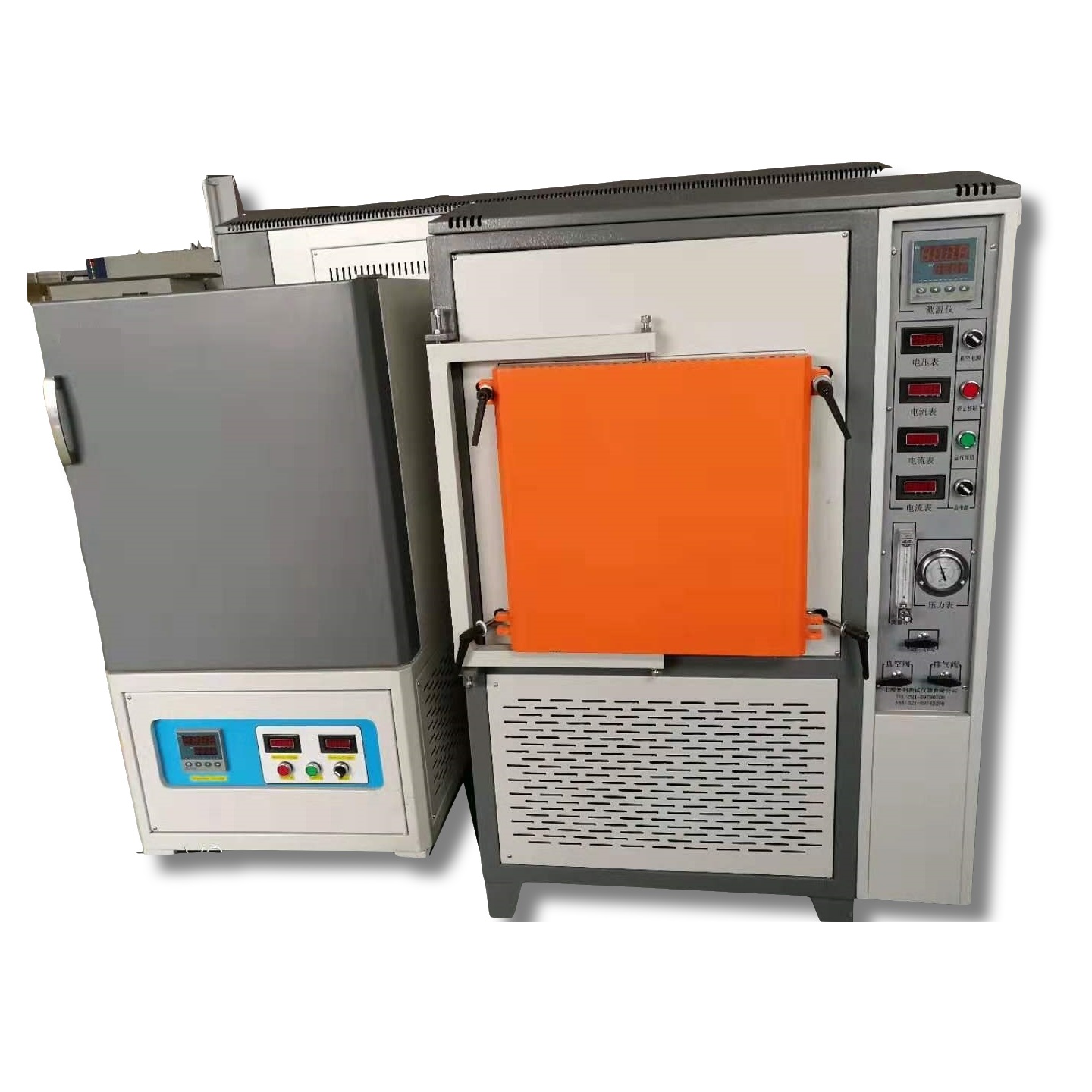

Chamber atmospheric furnace of the SLQ series



Chamber atmospheric furnace of the SLQ series




Chamber atmospheric furnace of the SLQ series



The chamber atmosphere furnace adds vacuum system and gas supply system to the SLX series chamber resistance furnace. The atmosphere furnace is sealed by the outer casing, the cover is sealed with silicone mud, the furnace door is equipped with a water cooling system and  a silica gel pad, and the flow rate is controlled by a flow meter. The atmosphere furnace is mainly used for high temperature atmosphere sintering, atmosphere reduction, CVD experiment, melting, etc.



Product type


SLQ1700-30

SLQ1700-40

SLQ1700-50


L × W × H, mm


300×200×200

400×300×300

500×400×400


Working voltage (v)


220

380

380


Maximum power (kW)


12

16

25


Heating element



High quality silicon molybdenum rod



Working temperature


300-1600


Heating rate (°C/min)


≤ 20


Vacuum


Used vaccum:≤-0.02Mpa



Supplied gas



Oxygen, nitrogen, argon, hydrogen and other inert atmospheres



Atmospheric pressure



Used atmospheric pressure: ≤-0.03Mpa
