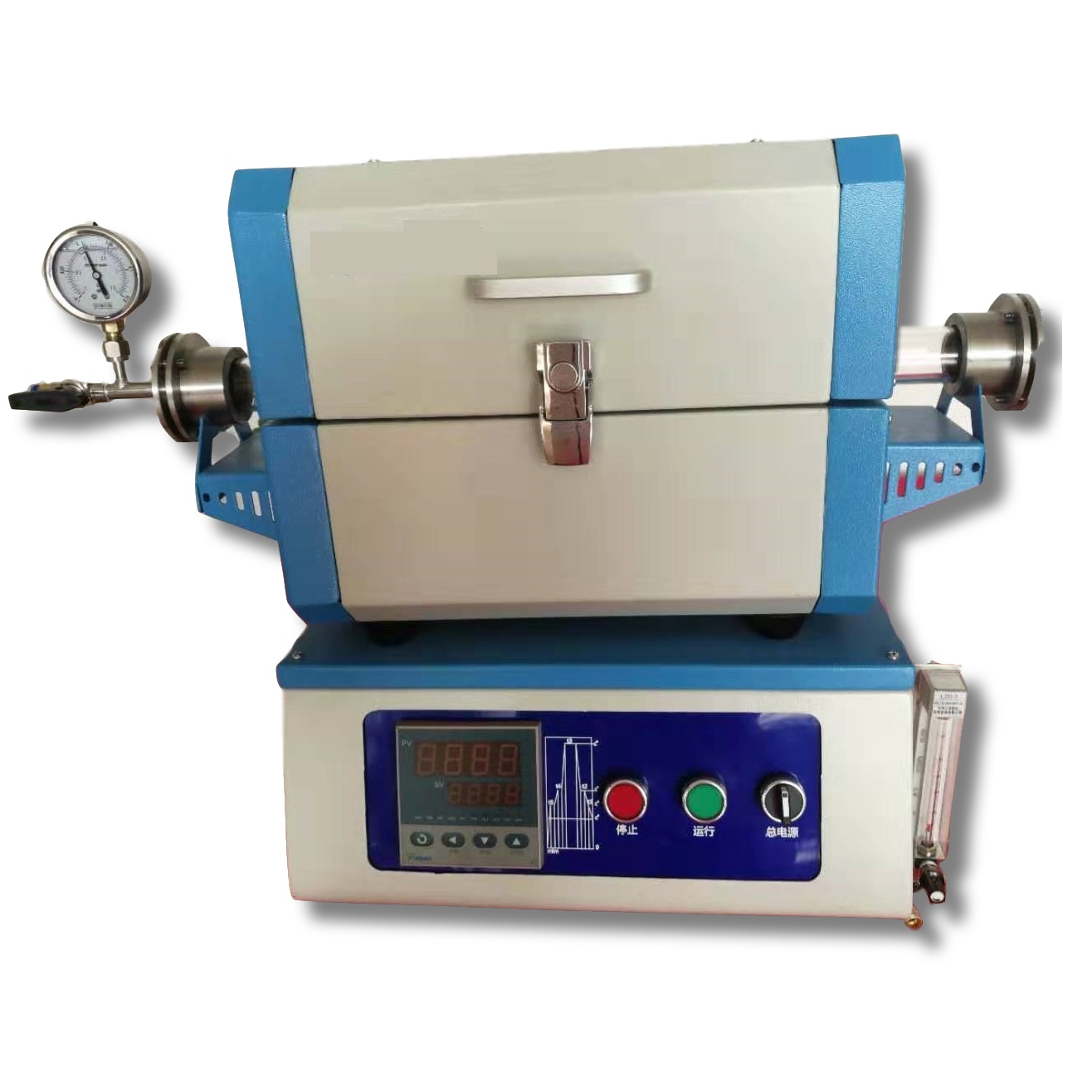

The high-temperature tubular furnace uses high-quality silicon-molybdenum rod as heating element, has a two-layer lining structure, is made of polycrystalline alumina-based fibrous material, and the two-layer furnace body is equipped with an air-cooling system, due to which it can quickly heat and cool. A high-purity corundum tube (99) is closed with stainless steel flanges at both ends, and the flow rate is controlled by a flow meter.

Product type

SLG1700-60

SLG1700-80

SLG1700-100

Furnace tube specifications

Ø60/50×1000

Ø60/50×L1000

Working voltage (v)

Single phase, 220 D, 50/60 Hz

Maximum power (kW)

Heating element

High quality silicon molybdenum rod

Working temperature

1600

Heating rate (°C/min)

≤ 20

Heating zone

Heating zone length: 300 mm

Length of constant temperature zone: 150 mm (± 1)

Vacuum

Working Vaccum: ≤-0.02 MPa

Supplied gas

Oxygen, nitrogen, argon, hydrogen and other inert atmospheres

Control method

PID control method, temperature control accuracy: ± 1

Sealing system

Система

Stainless steel sealing flanges are provided at both ends of the furnace tube. (Including a precision needle valve, vacuum gauge, hose connector).
