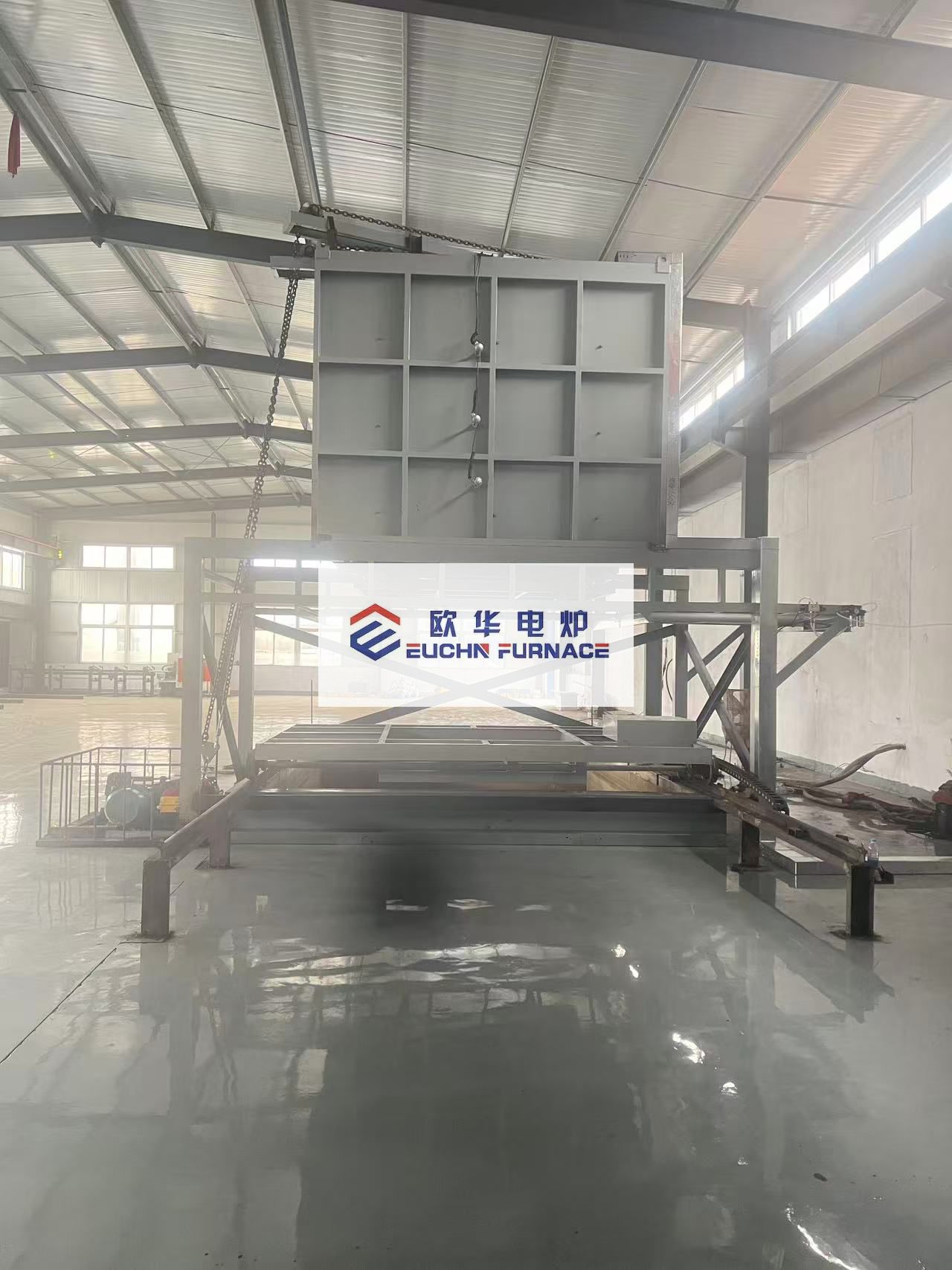

With the widespread application of high-end aluminum alloy materials in aerospace, new energy vehicles, and other fields, vertical aluminum alloy quenching furnaces have become a new focus in the heat treatment industry due to their unique design and technical advantages. This equipment adopts a vertical layout, integrating an intelligent temperature control system with rapid quenching technology, significantly improving the heat treatment quality and production efficiency of aluminum alloy workpieces.
I. Key Features
- High Space Utilization: The vertical design optimizes floor space.
- Excellent Temperature Uniformity: Ensures consistent heating throughout the workpiece.
- Rapid Quenching Response: Minimizes transfer time for superior material properties.
- 30% Energy Consumption Reduction: Achieves significant energy savings.
- Intelligent Control: Advanced system for precise operation and monitoring.
II. Technical Parameters
No. | Name | Technical Parameters |
1 | Rated Working Temperature | 650℃ |
2 | Rated Voltage | 380V |
3 | Temperature Uniformity | ±5℃ |
4 | Temperature Control Accuracy | Grade 0.3 |
5 | Heating Power | Resistance band heating 240KW (power adjustable and current limitable), single-zone power 80KW, can be used independently |
6 | Basket Inner Dimensions | 1600 × 1200 × 1200mm |
7 | Loading Capacity | 1000Kg |
8 | Empty Furnace Heating Time | 1.5h (to 550℃) |
9 | Fan Power | 5.5Kw (2 units) |
10 | Furnace Shell Surface Temp. Rise | ≤35℃ (excluding hot spots) |
11 | Quenching Transfer Time | ≤15S |
12 | Quenching Water Tank Effective Volume | ≥30m³ |
13 | Quenching Liquid Temperature | Room temperature |
14 | Water Tank Heating Method | Configured as required; not configured for this furnace |
15 | Agitator Power | Configured as required; not configured for this furnace |
16 | Loading Cart Movement | Manual push |
17 | Quenching Mechanism Motor Power | 17/11Kw (Descent rope speed: 16/32 meters/min) |
18 | Number of Heating Zones | 3 zones |
