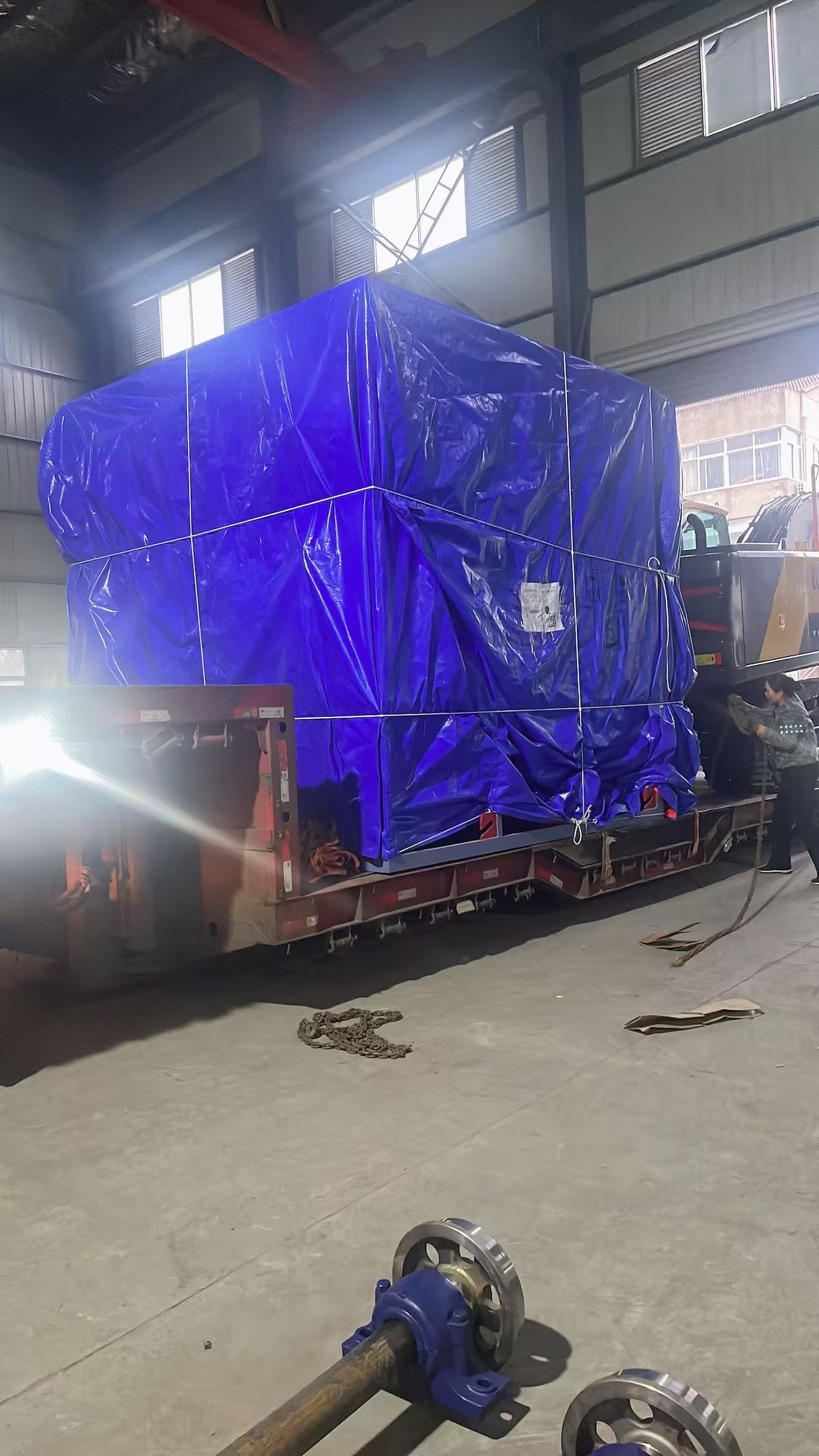

Recently, our company successfully shipped a Bogie Hearth Furnace with dimensions of 2000mm x 2000mm x 1500mm. This equipment was custom-designed and manufactured in strict accordance with the client's technical requirements, boasting significant advantages such as stable high-temperature performance, large loading capacity, high-precision temperature control, and a rational structural layout.
The equipment's furnace lining adopts a refractory fiber structure, which effectively reduces energy consumption and improves the working environment while ensuring excellent thermal insulation performance.
This Bogie Hearth Furnace set is equipped with a Rittal-style IP54 protection-rated control cabinet. All wiring has been completed and tested, making the equipment ready for immediate use upon arrival at the client's site. The control cabinet is positioned at the rear of the furnace body and is equipped with a furnace door remote control, further enhancing the safety and convenience of on-site operation.
From the confirmation of the solution and production manufacturing to the shipment of the complete unit, this Bogie Hearth Furnace project was successfully completed within the planned timeframe. This demonstrates our company's mature experience in large-scale Bogie Hearth Furnace customization, project management, and delivery capabilities.
As a professional industrial electric furnace manufacturer, our company is dedicated to the R&D and manufacturing of equipment such as Bogie Hearth Furnaces, pit-type furnaces, and aluminum alloy heat treatment furnaces. We provide non-standard custom solutions based on client process requirements. In the future, we will continue to create greater value for our clients with stable and reliable product quality and professional, comprehensive technical services.
For more information about Bogie Hearth Furnace equipment or to obtain detailed technical solutions, please feel free to contact us.
Technical Parameters
| No. | Parameter | Specification |
| 1 | Effective Working Dimensions | L2000 × W2000 × H1500 mm |
| 2 | Hearth Dimensions | L2300 × W2300 × H1600 mm |
| 3 | Rated Heating Power | 270 Kw |
| 4 | Rated Temperature | 1200°C (2520 Hearth Plate) |
| 5 | Operating Temperature | 1150°C |
| 6 | Heating Method | Electric Resistance Heating Elements |
| 7 | Wiring Method | Star Connection |
| 8 | Power Supply | ~380V, Frequency 50Hz |
| 9 | Temperature Control Method | PID Program Automatic Temperature Control |
| 10 | Temperature Control Zones | 2 Zones |
| * Control Cabinet Note | Rittal-style control cabinet, IP54 rated, pre-wired for shipment. Cabinet located at the rear wall of the furnace body, equipped with furnace door remote control. |
|
| * Instrumentation Note | Yudian Controller and Touch Screen (English Interface) |
|
| 11 | Temperature Measurement Accuracy (Instrument) | Grade 0.3 |
| 12 | Furnace Temperature Uniformity | ±10℃ |
| 13 | Loading Capacity | 10 Tons |
| 14 | Furnace Shell Outer Wall Temperature Rise | ≤45℃ |
| 15 | Furnace Lining Type | Refractory Fiber |
| 16 | Equipment Overall Dimensions | L5000 × W3100 × H5000 mm |
| * Wiring Layout Note | Resistance elements leads for the front zone side walls are routed to the rear wall exit. The heating element leads for the rear zone are all routed to the rear wall exit. No cable trays on the sides. Control cabinet total width should ideally be limited to ≤3000 mm. |
|
| 17 | Floor Area Requirement | L10000 × W5000 |
| 18 | Estimated Equipment Weight | 8 Tons |
| 19 | Lead Time | 40 days |
